FIELD TERMINATION PLUG CAT8

Universe: Copper

Subrange: KEYSTONE JACK & ACCESSORIES

The Unikkern Cat8 Field Termination Plug offers an advanced, tool-free solution for high-speed network terminations. Designed to deliver top-tier electrical performance in Class I up to 2000 MHz, it supports data transmission speeds of up to 40Gbps over short distances. Its fully shielded 360° zinc-alloy housing provides enhanced protection against electromagnetic interference (EMI), ensuring signal integrity even in high-density environments. With compatibility for both solid and stranded wires from AWG26 to AWG22, and color-coded according to T568A/B standards, the plug ensures accurate, reliable, and quick field installations. Its compact and robust design is ideal for data centers, enterprise networks, and industrial environments where performance, reliability, and flexibility are key. It also supports the latest PoE++ standards, delivering up to 90W of power.

Unik

Supports transfer speeds up to 40 Gbps
Channel link up to 30 meters
Compact & unique design
Fast & easy to terminate, tooless
Conforming to Class I up to 2000 MHz Cat8.1 360° shielded
Support solid wire from AWG26 to 22

Datasheets & Docs

Datasheets

KMP8EFx_Field termination plug Cat8 360° shielded_EN

KMP8EFx_Connecteur de terrain Cat8 360° blindé_FR

KCFF6AxPZHD
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
KCFF6AxPZHD

KCFF6AxPZHD
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
KCFF6AxPZHD

Applications & Performances

Explore compliance

- Connector
- EN50173-1
- System
- ISO/IEC 11801 Class I
- ANSI/TIA/EIA 568.2-D
- Applications
- IEEE 802.3 : 40G Base T
- IEEE 802.3bt /PoEH/4PPoE

Specs

Dive into technicalities

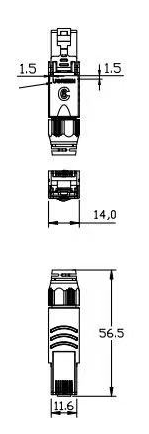

Size

(L)58mm x (l)12mm x (D)14.6m
IDC

Phosphor bronze
Wires

AWG26 & AWG22
Contact

Phosphor bronze + 50 micron gold
Housing

Zinc die casting
Color coding

T568B & T568A

ADDITIONAL INFORMATION

Ordering information

Navigate purchase info

- Category
- Cat8
- Shielding
- Shielded
- Item
- KMP8EF1
- Designation
- Field termination plug Cat8 shielded
- Packing
- Unit

360° Shielded
