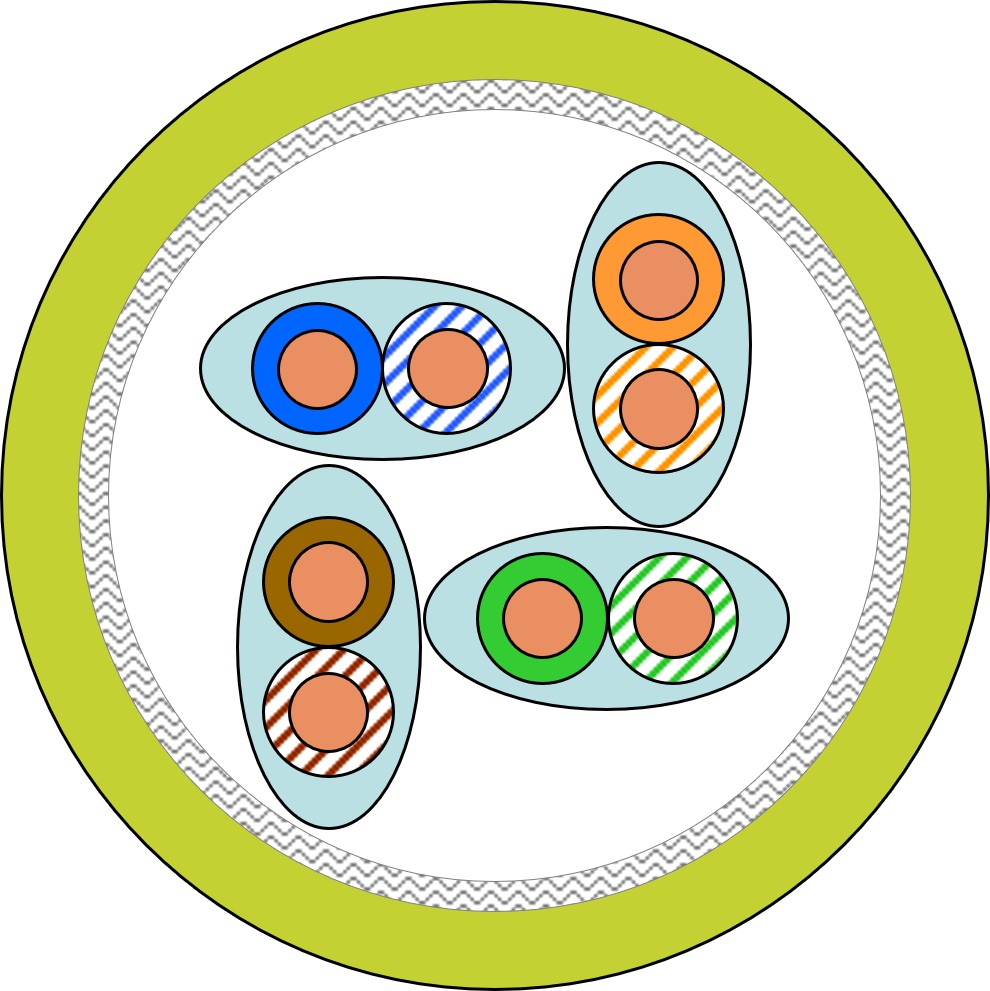

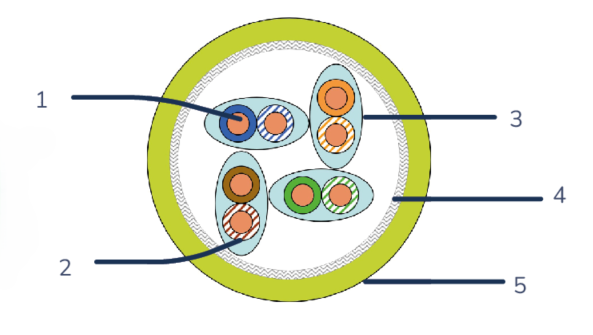

The UKN CAT8 S/FTP LSZH B2Ca cable is engineered for high-speed data transmission in demanding environments such as data centers and enterprise networks. Featuring a 4-pair 22 AWG solid bare copper conductor, each pair is individually shielded with foil (S/FTP), and an overall braid shield ensures superior protection against electromagnetic interference (EMI) and crosstalk. Compliant with international standards including ISO/IEC 11801 Class I and ANSI/TIA-568.2-D, this cable supports bandwidths up to 2000 MHz, facilitating 25GBASE-T and 40GBASE-T Ethernet applications over distances up to 30 meters. The Low Smoke Zero Halogen (LSZH) jacket meets B2Ca-s1a,d1,a1 fire performance classifications, ensuring enhanced safety by reducing toxic smoke emissions in case of fire. Designed for both current and future network requirements, the UKN CAT8 cable is backward compatible with previous Ethernet standards, providing flexibility and scalability. It supports Power over Ethernet (PoE) applications, including PoE, PoE+, and PoE++, delivering up to 100 watts of power, making it suitable for powering devices such as wireless access points, IP cameras, and VoIP phones.

• S/FTP
• CAT8
