KEYSTONE JACK CAT6 RJ45 SHIELDED

Fully shielded 360° Tooless

Universe: Copper
Subrange: Keystone jacks

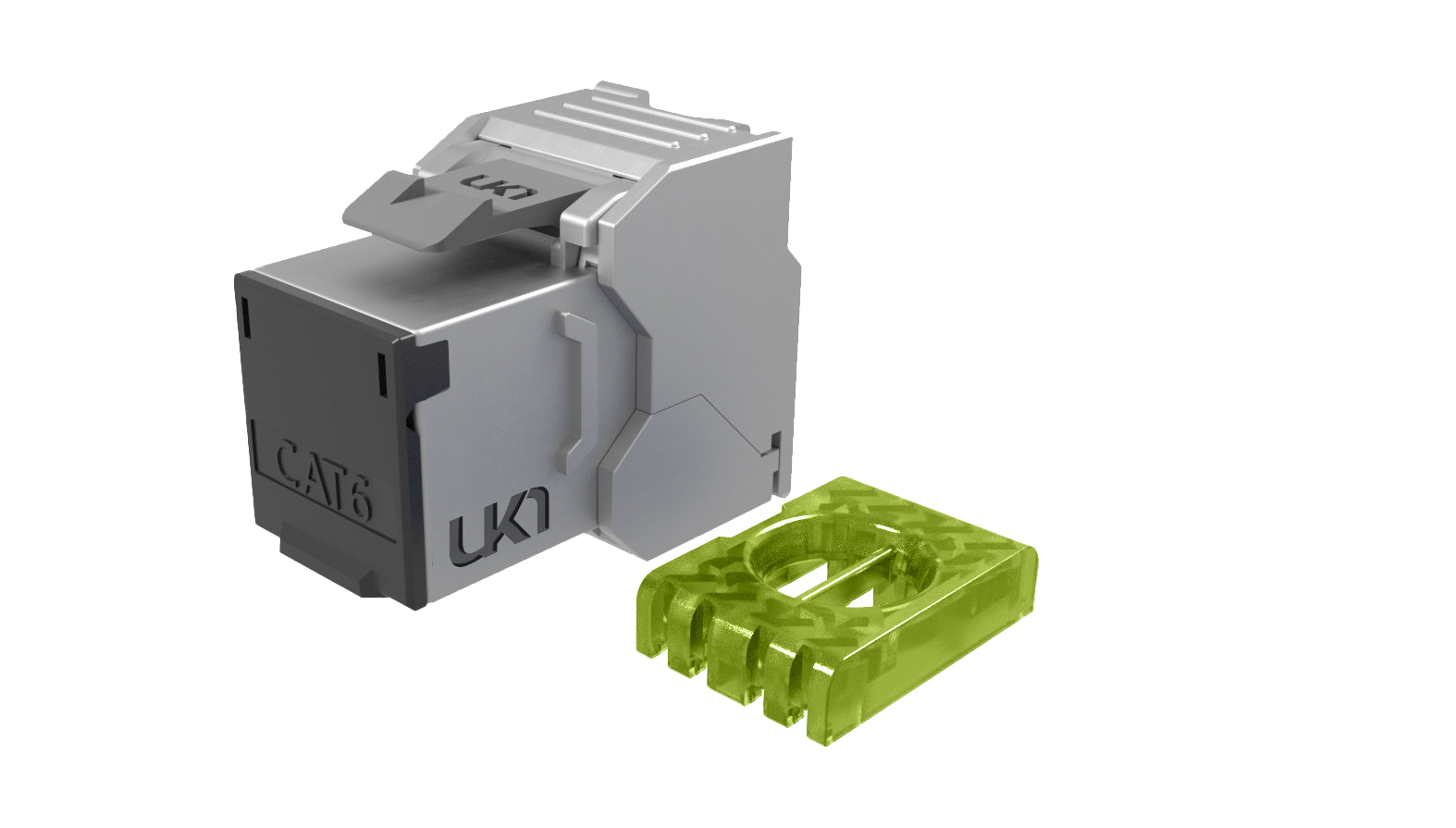

The Unikkern Keystone Cat6 360° shielded jack, is made from die-cast Zinc-alloy, providing superior electrical performance. In Class E testing, it exhibits excellent margins for both Near-End Crosstalk (NEXT) and Return Loss, especially when used with standardized cables. With its standard Keystone form factor and a compact size of 33.6mm (including the shutter), this keystone jack is compatible with all existing accessories in the market.

KEYSTONE JACK CAT6 RJ45 SHIELDED

Unik

Unik

  • Component certified Cat6 by ETL Intertek
  • Compact & unique design
  • Fast & easy to terminate, tooless
  • Conforming to Class E up to 250 MHz
  • Integrated anti-dust shutter
  • Cat6 AWG24 & AWG23

Datasheets & Docs

  • KCFF6AxPZHD

  • Lorem ipsum dolor sit amet, consectetur adipiscing elit

  • Lorem ipsum dolor sit amet, consectetur adipiscing elit

  • KCFF6AxPZHD

  • KCFF6AxPZHD

  • Lorem ipsum dolor sit amet, consectetur adipiscing elit

  • Lorem ipsum dolor sit amet, consectetur adipiscing elit

  • KCFF6AxPZHD

Applications & Performances

Explore compliance

    • Connector
    • IEC 60603-7-5:2010 Cat6
    • IEC 60512-99-002 2A (Contact endurance test)
    • System
    • ISO/IEC 11801-1:2017 Class E
    • Applications
    • IEEE 802.3 : 1G, 2.5G & 5G BASE T
    • IEEE 802.3 POE : Type 1 to 4, up to 90w

Specs

Dive into technicalities

  • Size

    (L)24.3mm x (l)14.5mm x (D)33.6m

  • IDC

    Bronze + platinum

  • Wires

    AWG24 & AWG23

  • Contacts

    Phosphore bronze + Au 1.2 micron

    Zamac + Thermoplastic ULV0

  • Green inserts

    Insulation diameter max: 1.25

    Cable diameter max: 7.8 mm

  • Color coding

    T568B & T568A

ADDITIONAL INFORMATION

Ordering information

Navigate purchase info

    • Category
    • Cat6
    • Cat6
    • Cat6
    • Shielding
    • Shielded
    • Shielded
    • Shielded
    • Item
    • KJ6FSHQEF1
    • KJ6FSHQEF8
    • KJ6FSHQEF24
    • Designation
    • Keystone jack Cat6 shielded 360° tooless
    • Keystone jack Cat6 shielded 360° tooless
    • Keystone jack Cat6 shielded 360° tooless
    • Packing
    • Unit
    • Eco-box of 8pcs
    • Eco-box of 24pcs
