CAT7 CABLE S/FTP AWG23 LSZH

Universe: Copper

Subrange:Data Cable

Unikkern’s Cat7 screened S/FTP LSZH Cable exceeds ISO and TIA standards, delivering excellent Class F link and channel performance for diverse applications.

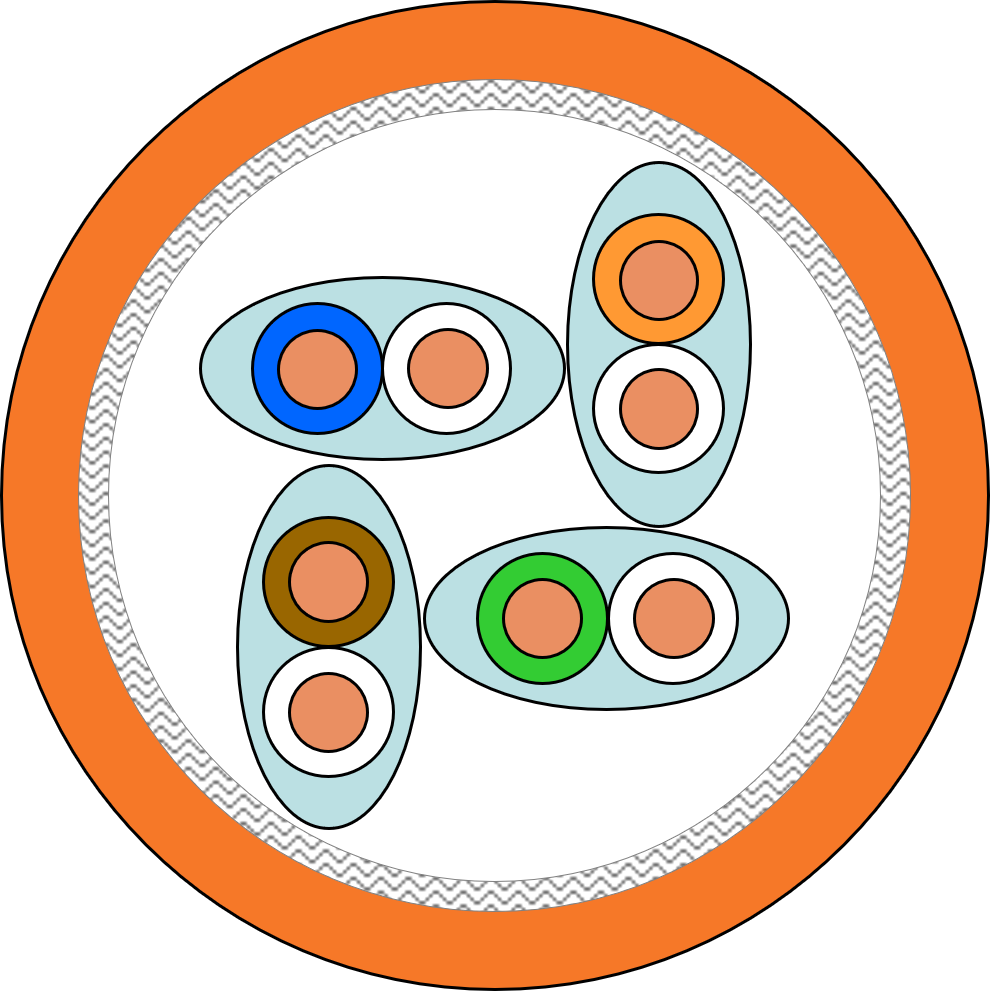

Featuring 4 individually wrapped pairs shielded by high-quality aluminum/polyester foil tape, each Category 7 the cable ensures efficient screening.

These pairs are carefully assembled with varying lay lengths, optimizing performance. An overall braid screen provides additional noise immunity and minimizes cross talk risks.

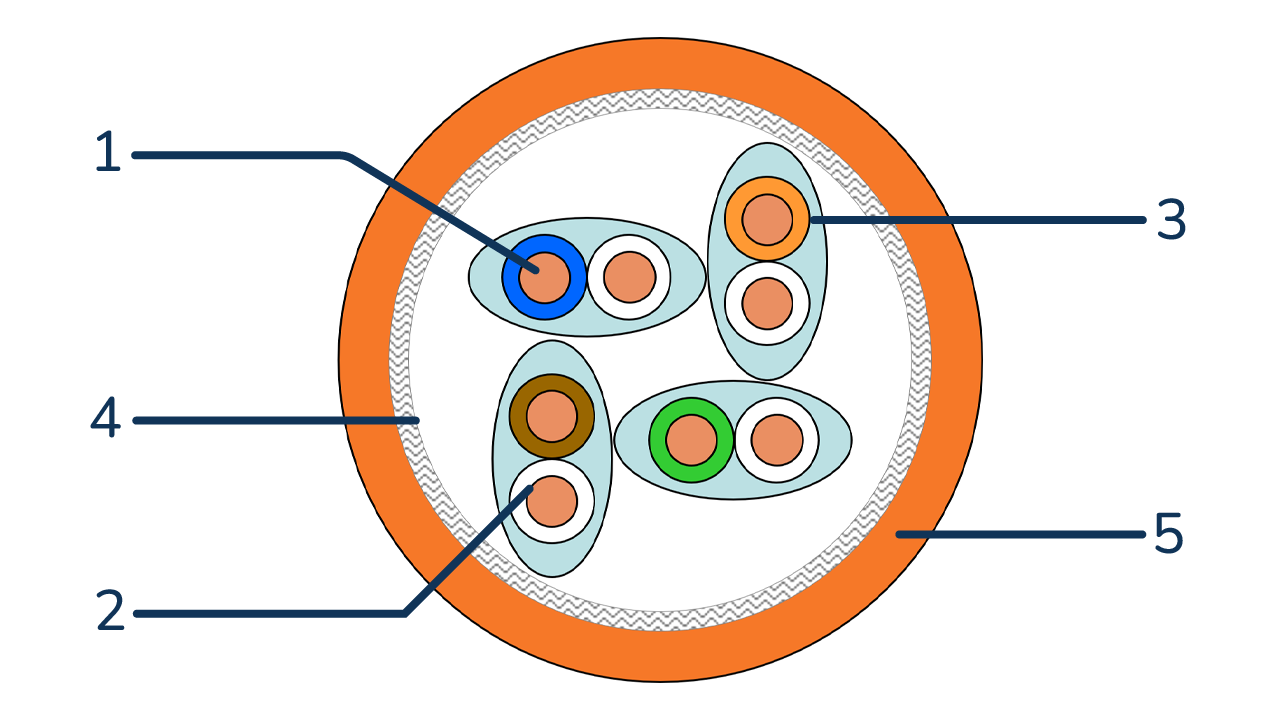

1. Conductor : AWG23
2. Insulation : Skin foam skin PE
3. Shielding : Al/Pes foil
4. Braiding : Tinned copper
5. Jacket : LSZH Orange RAL 2003

Unik

Compliant to ISO 11801 Class F and verified by ETL Intertek
Certified by ETL INTERTE
Jacket LSZH available in Dca, Cca and B2ca - EN50575
Tested up to 1Ghz

Datasheets & Docs

KCSF7xPZH CAT7 SFTP LSZH ETL INTERTEK CERTIFICATE

KCSF7xPZH CAT7 SFTP LSZH ETL INTERTEK CERTIFICATE

KCFF6AxPZHD
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
KCFF6AxPZHD

KCFF6AxPZHD
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
KCFF6AxPZHD

Ordering information

Navigate purchase info

- Category
- Cat7
- Cat7
- Cat7
- Cat7
- Shielding
- S/FTP
- S/FTP
- S/FTP
- S/FTP
- Item
- KCSF74PZHDOR5
- KCSF78PZHDOR5
- KCSF74PZHCOR5
- KCSF74PZHB2OR5
- Designation
- Cable 4 pairs Cat7 S/FTP awg23 LSZH Dca
- Cable 2x4 pairs Cat7 S/FTP awg23 LSZH Dca
- Cable 4 pairs Cat7 S/FTP awg23 LSZH Cca
- Cable 4 pairs Cat7 S/FTP awg23 LSZH B2ca
- Diameter (nom)
- 7.3mm
- 7.3mm x 14.7mm
- 7.4mm
- 7.4mm
- Weight (Kg/km)
- 52
- 105
- 55
- 57
- Packing
- D500M
- D500M
- D500M
- D500M

4 pairs & 2x4 pairs
